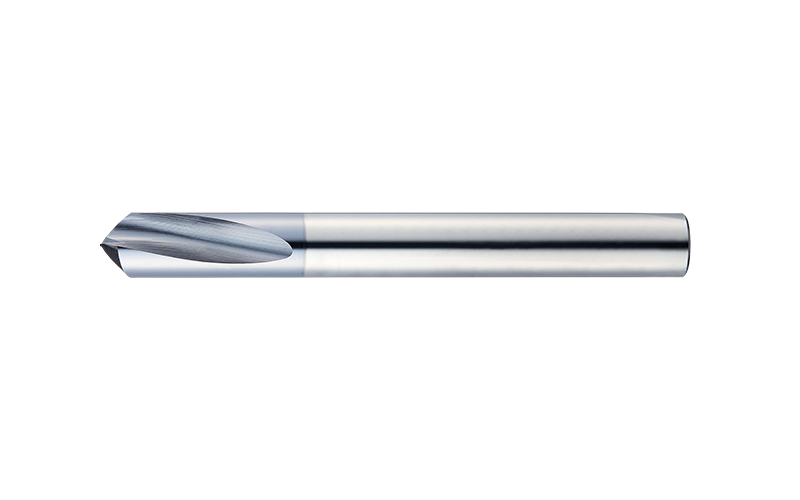

UR NC DRILL Model No. URNC

Feature of product

Multipurpose machining for edges and chamfer work

Catalog Inquiry

l NC drill point angle 90°

EDP.No	Diamater	Effective Length	Overall Length	Shank Dia	Stock
EDP.No	D	L1	L	d	Stock
URNC9030-100-SS	3.0	10.0	54	3.0	●
URNC9040-100-SS	4.0	10.0	54	4.0	●
URNC9050-100-SS	5.0	10.0	65	5.0	●
URNC9060-130-SS	6.0	13.0	76	6.0	●
URNC9080-230-SS	8.0	23.0	82	8.0	●
URNC9100-240-SS	10.0	24.0	90	10.0	●
URNC9120-240-SS	12.0	24.0	90	12.0	●
URNC9160-290-SS	16.0	29.0	90	16.0	●
URNC9200-350-SS	20.0	35.0	107	20.0	●

l NC drill point angle 120°

EDP.No	Diamater	Effective Length	Overall Length	Shank Dia	Stock
EDP.No	D	L1	L	d	Stock
URNC12030-100-SS	3.0	10.0	54	3.0	●
URNC12040-100-SS	4.0	10.0	54	4.0	●
URNC12050-100-SS	5.0	10.0	65	5.0	●
URNC12060-130-SS	6.0	13.0	76	6.0	●
URNC12080-230-SS	8.0	23.0	82	8.0	●
URNC12100-240-SS	10.0	24.0	90	10.0	●
URNC12120-240-SS	12.0	24.0	90	12.0	●
URNC12160-290-SS	16.0	29.0	90	16.0	●
URNC12200-350-SS	20.0	35.0	107	20.0	●
