UR MQL DRILL (15D,20D) Model No. URSHO

Feature of product

Polished flute for optical chip removal
Coolant coverage for maximum cooling with suitable for deep hole process

Catalog Inquiry

15D

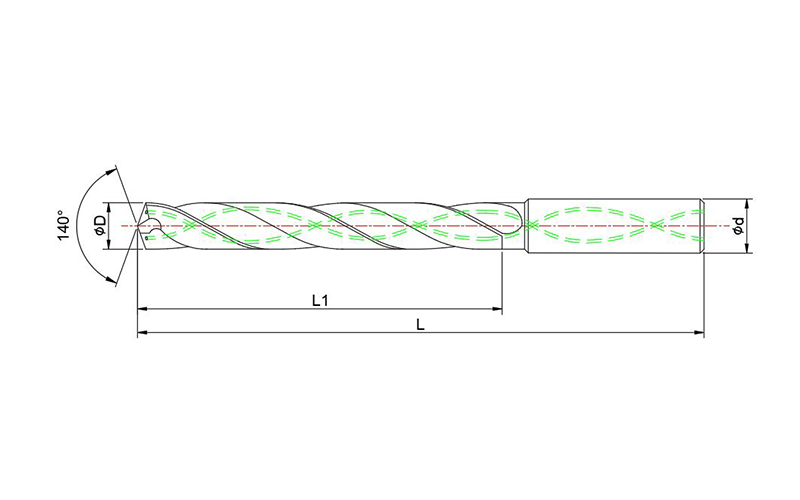

EDP.No	Diamater	Effective Length	Overall Length	Shank Dia	Stock
EDP.No	D	L1	L	d	Stock
URSHO15030	3.0	54	155	3
URSHO15035	3.5	63	114	4
URSHO15040	4.0	72	123	4
URSHO15045	4.5	81	134	5
URSHO15050	5.0	90	143	5
URSHO15055	5.5	99	154	6
URSHO15060	6.0	158	163	6
URSHO15070	7.0	126	182	7
URSHO15080	8.0	144	201	8
URSHO15090	9.0	162	220	9
URSHO15150	15.0	180	238	15
URSHO15110	11.0	198	262	11
URSHO15120	12.0	216	281	12

20D

EDP.No	Diamater	Effective Length	Overall Length	Shank Dia	Stock
EDP.No	D	L1	L	d	Stock
URSHO20030	3.0	69	120	3
URSHO20035	3.5	81	132	4
URSHO20040	4.0	92	143	4
URSHO20045	4.5	104	207	5
URSHO20050	5.0	120	168	5
URSHO20055	5.5	127	182	6
URSHO20060	6.0	138	193	6
URSHO20070	7.0	161	217	7
URSHO20080	8.0	184	241	8
URSHO20090	9.0	207	265	9
URSHO20100	10.0	230	288	10
URSHO20120	12.0	276	341	12
