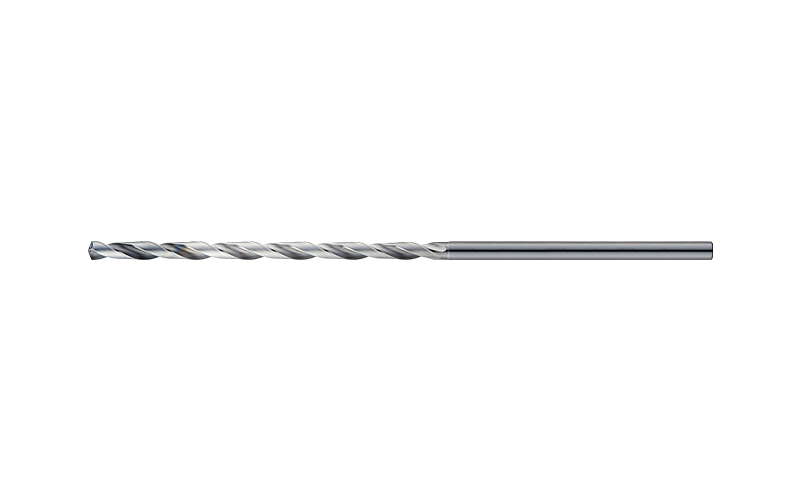

UR MQL DRILL (10D) Model No. URSHO

Feature of product

Polished flute for optical chip removal
Coolant coverage for maximum cooling with suitable for deep hole process

Catalog Inquiry

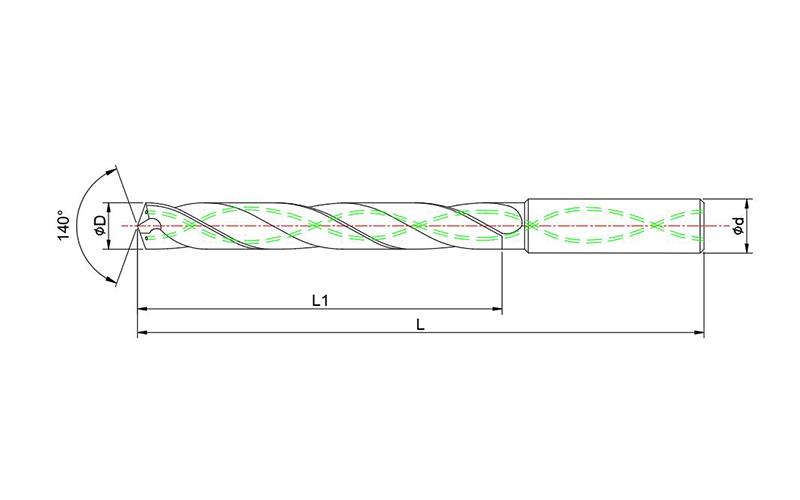

EDP.No	Diamater	Effective Length	Overall Length	Shank Dia	Stock
EDP.No	D	L1	L	d	Stock
URSHO5030	3.0	39	90	3
URSHO5033	3.3	46	97	4
URSHO5035	3.5	46	97	4
URSHO5040	4.0	52	103	4
URSHO5042	4.2	59	112	5
URSHO5045	4.5	59	112	5
URSHO5050	5.0	65	118	5
URSHO5055	5.5	72	127	6
URSHO5060	6.0	78	133	6
URSHO5065	6.5	85	141	7
URSHO5068	6.8	91	147	7
URSHO5070	7.0	91	147	7
URSHO5075	7.5	98	155	8
URSHO5080	8.0	104	161	8
URSHO5085	8.5	111	169	9
URSHO5090	9.0	117	175	9
URSHO5095	9.5	124	182	10
URSHO5100	10.0	130	188	10
URSHO5105	10.5	137	201	11
URSHO5110	11.0	143	207	11
URSHO5115	11.5	150	215	12
URSHO5120	12.0	156	221	12
URSHO5125	12.5	163	229	13
URSHO5130	13.0	169	235	13
URSHO5135	13.5	176	243	14
URSHO5140	14.0	182	249	14
