High feed rateCUPID OILHOLE DRILL 3F (5D)(CUTFL)

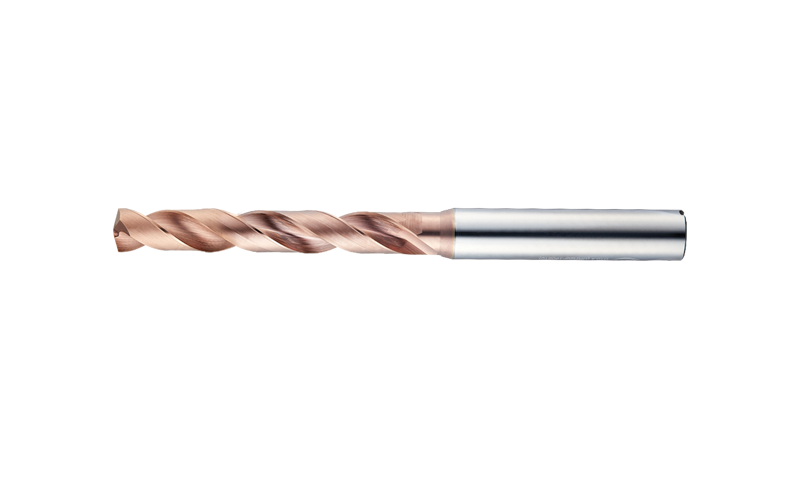

CUPID OILHOLE DRILL 3F (5D) Model No. CUTFL

Feature of product

Suitable for machining carbon steel, alloy steel, special steel, cast iron
Reduced processing time with higher feed and rpm compared to 2 blades
Excellent chip cutting for easy chip evacuation

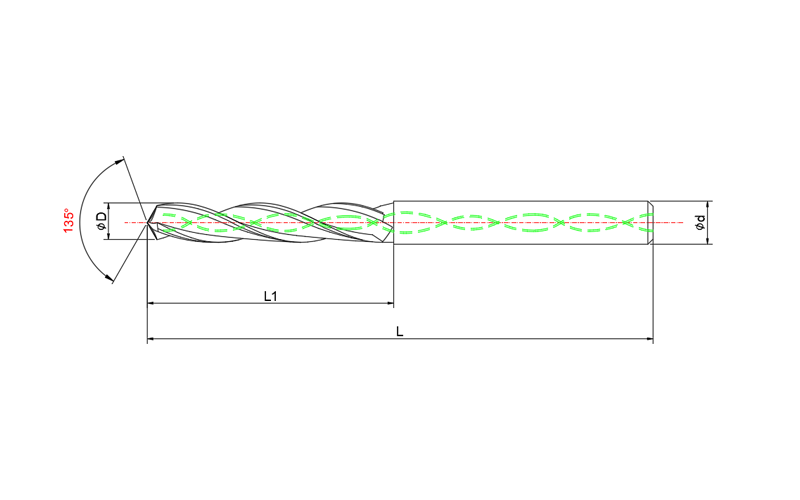

EDP.No	Diamater	Effective Length	Overall Length	Shank Dia	Stock
EDP.No	D	L1	L	d	Stock
CUTFL5050	5.0	44	80	6
CUTFL5051	5.1	44	80	6
CUTFL5052	5.2	44	80	6
CUTFL5053	5.3	44	80	6
CUTFL5054	5.4	44	80	6
CUTFL5055	5.5	44	80	6
CUTFL5056	5.6	44	80	6
CUTFL5057	5.7	44	80	6
CUTFL5058	5.8	44	80	6
CUTFL5059	5.9	44	80	6
CUTFL5060	6.0	44	80	6
CUTFL5061	6.1	53	83	8
CUTFL5062	6.2	53	83	8
CUTFL5063	6.3	53	83	8
CUTFL5064	6.4	53	83	8
CUTFL5065	6.5	53	83	8
CUTFL5066	6.6	53	83	8
CUTFL5067	6.7	53	83	8
CUTFL5068	6.8	53	83	8
CUTFL5069	6.9	53	83	8
CUTFL5070	7.0	53	83	8
CUTFL5071	7.1	53	90	8
CUTFL5072	7.2	53	90	8
CUTFL5073	7.3	53	90	8
CUTFL5074	7.4	53	90	8
CUTFL5075	7.5	53	90	8
CUTFL5076	7.6	53	90	8
CUTFL5077	7.7	53	90	8
CUTFL5078	7.8	53	90	8
CUTFL5079	7.9	53	90	8
CUTFL5080	8.0	53	90	8
CUTFL5081	8.1	61	98	10
CUTFL5082	8.2	61	98	10
CUTFL5083	8.3	61	98	10
CUTFL5084	8.4	61	98	10
CUTFL5085	8.5	61	98	10
CUTFL5086	8.6	61	98	10
CUTFL5087	8.7	61	98	10
CUTFL5088	8.8	61	98	10
CUTFL5089	8.9	61	98	10
CUTFL5090	9.0	61	98	10
CUTFL5091	9.1	61	105	10
CUTFL5092	9.2	61	105	10
CUTFL5093	9.3	61	105	10
CUTFL5094	9.4	61	105	10
CUTFL5095	9.5	61	105	10
CUTFL5096	9.6	61	105	10
CUTFL5097	9.7	61	105	10
CUTFL5098	9.8	61	105	10
CUTFL5099	9.9	61	105	10
CUTFL5100	10.0	61	105	10
CUTFL5101	10.1	71	110	12
CUTFL5102	10.2	71	110	12
CUTFL5103	10.3	71	110	12
CUTFL5104	10.4	71	110	12
CUTFL5105	10.5	71	110	12
CUTFL5106	10.6	71	110	12
CUTFL5107	10.7	71	110	12
CUTFL5108	10.8	71	110	12
CUTFL5109	10.9	71	110	12
CUTFL5110	11.0	71	110	12
CUTFL5111	11.1	71	120	12
CUTFL5112	11.2	71	120	12
CUTFL5113	11.3	71	120	12
CUTFL5114	11.4	71	120	12
CUTFL5115	11.5	71	120	12
CUTFL5116	11.6	71	120	12
CUTFL5117	11.7	71	120	12
CUTFL5118	11.8	71	120	12
CUTFL5119	11.9	71	120	12
CUTFL5120	12.0	71	120	12
CUTFL5121	12.1	77	137	14
CUTFL5122	12.2	77	137	14
CUTFL5123	12.3	77	137	14
CUTFL5124	12.4	77	137	14
CUTFL5125	12.5	77	137	14
CUTFL5126	12.6	77	137	14
CUTFL5127	12.7	77	137	14
CUTFL5128	12.8	77	137	14
CUTFL5129	12.9	77	137	14
CUTFL5130	13.0	77	137	14
CUTFL5131	13.1	77	147	14
CUTFL5132	13.2	77	147	14
CUTFL5133	13.3	77	147	14
CUTFL5134	13.4	77	147	14
CUTFL5135	13.5	77	147	14
CUTFL5136	13.6	77	147	14
CUTFL5137	13.7	77	147	14
CUTFL5138	13.8	77	147	14
CUTFL5139	13.9	77	147	14
CUTFL5140	14.0	77	147	14
CUTFL5141	14.1	83	153	16
CUTFL5142	14.2	83	153	16
CUTFL5143	14.3	83	153	16
CUTFL5144	14.4	83	153	16
CUTFL5145	14.5	83	153	16
CUTFL5146	14.6	83	153	16
CUTFL5147	14.7	83	153	16
CUTFL5148	14.8	83	153	16
CUTFL5149	14.9	83	153	16
CUTFL5150	15.0	83	153	16
CUTFL5151	15.1	83	160	16
CUTFL5152	15.2	83	160	16
CUTFL5153	16.3	83	160	16
CUTFL5154	15.4	83	160	16
CUTFL5155	15.5	83	160	16
CUTFL5156	15.6	83	160	16
CUTFL5157	15.7	83	160	16
CUTFL5158	15.8	83	160	16
CUTFL5159	15.9	83	160	16
CUTFL5160	16.0	83	160	16
CUTFL5161	16.1	93	160	18
CUTFL5162	16.5	93	160	18
CUTFL5163	17.0	93	160	18
CUTFL5164	17.5	93	160	18
CUTFL5165	18.0	93	160	18
CUTFL5166	18.5	101	160	20
CUTFL5167	19.0	101	160	20
CUTFL5168	19.5	101	160	20
CUTFL5169	20.0	101	160	20
