H+SERIES ENDMILLS Model No. H4EM

Feature of product

Suitable for pre-hardened and hardened sttel
Adjusting utral fine WC grade and Si coating makes higher resistance

Catalog Inquiry

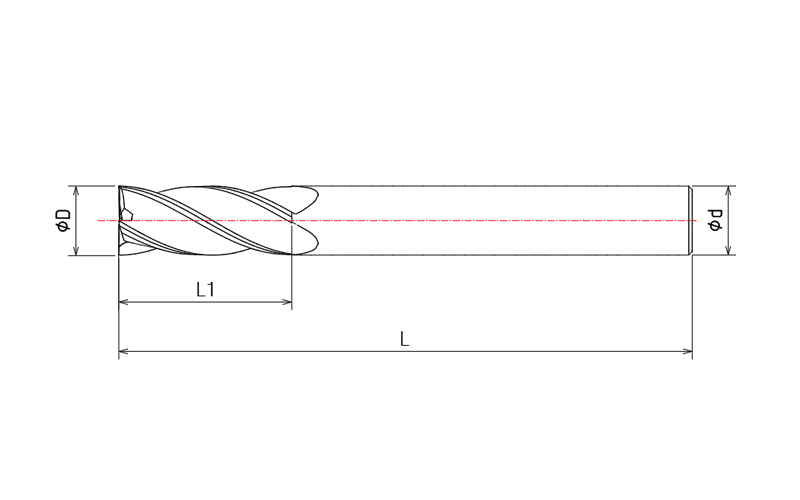

EDP.No	Outside Diamdter	Lengt of	Shank	Overall	Stock
EDP.No	D	Cut (1.)	Diameter (d)	Length (L)	Stock
H4EM-010-025-040-045	1	2.5	4	45
H4EM-012-040-040-045	1.2	4	4	45
H4EM-015-040-040-045	1.5	4	4	45
H4EM-020-060-040-045	2	6	4	45
H4EM-025-080-040-045	2.5	8	4	45
H4EM-030-100-040-050	3	10	4	50
H4EM-035-100-060-050	3.5	10	6	50
H4EM-040-120-040-050	4	12	4	50
H4EM-050-150-060-050	5	15	6	50
H4EM-060-150-060-050	6	15	6	50
H4EM-060-150-060-075	6	15	6	75
H4EM-070-200-080-065	7	20	8	65
H4EM-080-200-080-065	8	20	8	65
H4EM-080-200-080-075	8	20	8	75
H4EM-100-250-100-070	10	25	10	70
H4EM-100-250-100-075	10	25	10	75
H4EM-120-300-120-080	12	30	12	80
