High hardnessH+SERIES BALL ENDMILLS

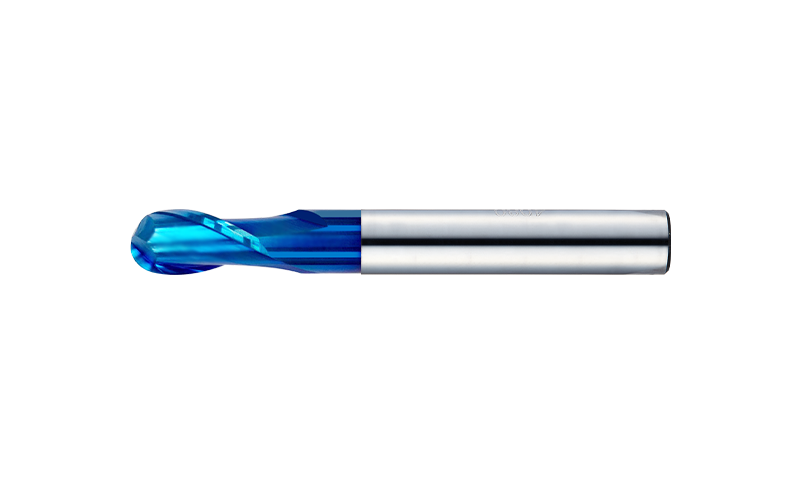

H+SERIES BALL ENDMILLS Model No. H2BM

Feature of product

Suitable for pre-hardened and hardened sttel
Adjusting utral fine WC grade and Si coating makes higher resistance

Catalog Inquiry

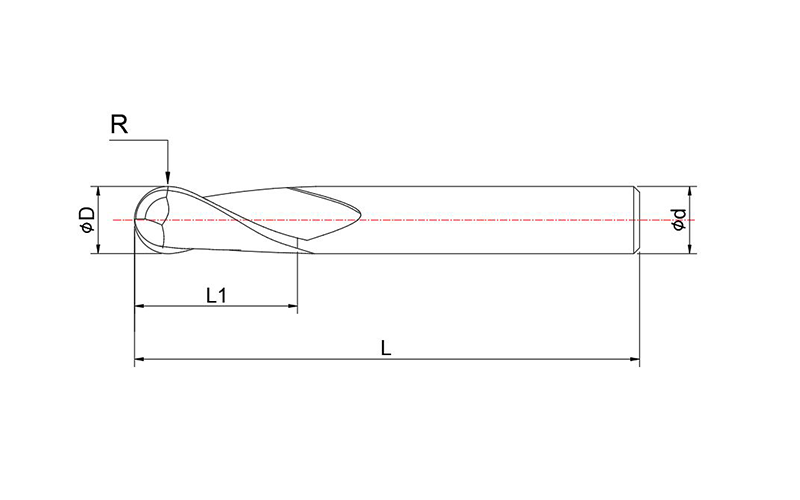

EDP.No	Radius of Ball	Length of	Shank	Overall	Stock
EDP.No	Nose (R)	Cut (1.)	Diameter (d)	Length (L)	Stock
H2BM-001-002-040-045	R0.05	0.2	4	45
H2BM-002-004-040-045	R0.1	0.4	4	45
H2BM-003-006-040-045	R0.15	0.6	4	45
H2BM-004-008-040-045	R0.2	0.8	4	45
H2BM-005-010-040-045	R0.25	1	4	45
H2BM-006-012-040-045	R0.3	1.2	4	45
H2BM-007-015-040-045	R0.35	1.5	4	45
H2BM-008-015-040-045	R0.4	1.5	4	45
H2BM-010-020-040-050	R0.5	2	4	50
H2BM-010-020-060-050	R0.5	2	6	50
H2BM-012-025-040-050	R0.6	2.5	4	50
H2BM-015-040-040-050	R0.75	4	4	50
H2BM-015-040-060-050	R0.75	4	6	50
H2BM-020-050-040-050	R1.0	5	4	50
H2BM-020-050-060-060	R1.0	5	6	60
H2BM-025-060-060-060	R1.25	6	6	60
H2BM-030-080-030-060	R1.5	8	3	60
H2BM-030-080-040-060	R1.5	8	4	60
H2BM-030-080-060-080	R1.5	8	6	80
H2BM-035-080-060-060	R1.75	8	6	60
H2BM-040-080-040-080	R2.0	8	4	60
H2BM-040-080-040-060	R2.0	8	4	80
H2BM-040-080-060-070	R2.0	8	6	70
H2BM-045-100-060-070	R2.25	10	6	70
H2BM-050-100-060-080	R2.5	10	6	80
H2BM-055-120-060-080	R2.75	12	6	80
H2BM-060-120-060-075	R3.0	12	6	75
H2BM-060-120-060-090	R3.0	12	6	90
H2BM-070-140-080-100	R3.5	14	8	100
H2BM-080-140-080-075	R4.0	14	8	75
H2BM-080-140-080-100	R4.0	14	8	100
H2BM-090-180-100-100	R4.5	18	10	100
H2BM-100-180-100-075	R5.0	18	10	75
H2BM-100-180-100-100	R5.0	18	10	100
H2BM-120-220-120-080	R6.0	22	12	80
H2BM-120-220-120-110	R6.0	22	12	110
